Blends

Blend

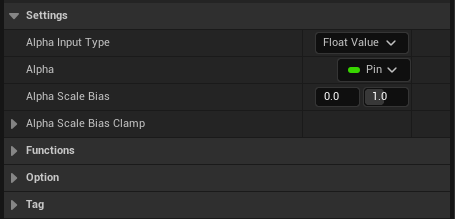

Blend Properties

Supported Properties

• Settings

  • Alpha input type

    • Float Value is supported, but Alpha input must be constant (no anim vars)

    • Bool Value is supported, but Alpha input must be constant (no anim vars)

    • Anim curve is unsupported

  • Alpha Scale Bias is unsupported (settings ignored)

  • Alpha Scale Bias Clamp is unsupported (settings ignored)

• Functions

• Option

• Tag

Blend Multi

Blend Multi Properties

Supported Properties

• Settings

  • Desired Alphas is supported, but input must be constant (no anim vars)

  • Alpha Scale Bias is unsupported

  • Additive Node is unsupported

  • Normalize Alpha is supported

• Functions

• Tag

Layered Blend Per Bone

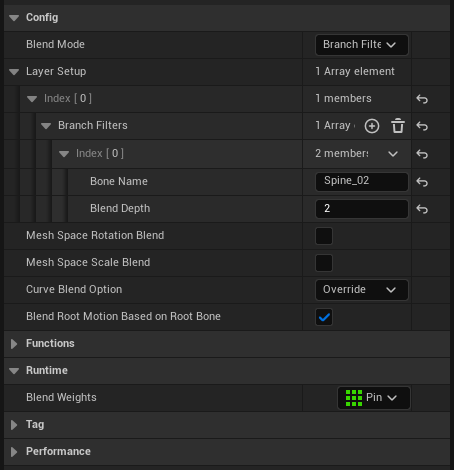

Layered Blend Per Bone Properties

Supported Properties

• Settings

  • Blend Mode is supported (both branch filter and blend mask supported)

  • Layer Setup (branch filter mode) supported, including multiple branch filters per layer

  • Blend Masks (blend mask mode) supported

  • Mesh Space Rotation Blend is unsupported

  • Mesh Space Scale Blend is unsupported

  • Curve Blend Options are unsupported (ignored)

  • Blend Root Motion Based On Root Bone is unsupported (ignored)

• Runtime

  • Blend Weights are supported, but input must be constant (no anim vars)

• Functions

• Tag

• Performance

Apply Additive

Apply Additive Properties

Supported Properties

• Settings

  • Alpha input type

    • Float Value is supported, but Alpha input must be constant (no anim vars)

    • Bool Value is supported, but Alpha input must be constant (no anim vars)

    • Anim curve is unsupported

  • Alpha Scale Bias is unsupported (ignored)

  • Alpha Scale Bias Clamp is unsupported (ignored)

• Functions

• Performance

• Tag

Apply Mesh Space Additive

Apply Mesh Space Additive Properties

Supported Properties

• Settings

  • Alpha input type

    • Float Value is supported, but Alpha input must be constant (no anim vars)

    • Bool Value is supported, but Alpha input must be constant (no anim vars)

    • Anim curve is unsupported

  • Alpha Scale Bias is unsupported (ignored)

  • Alpha Scale Bias Clamp is unsupported (ignored)

• Functions

• Performance

• Tag

Mesh Space Additive

See notes on mesh space additive support within crowd, since there are blending differences here from full ABP solution.
