Nameplates

PreviousExample PluginNextIn-game roles

Last updated 2 months ago

Was this helpful?

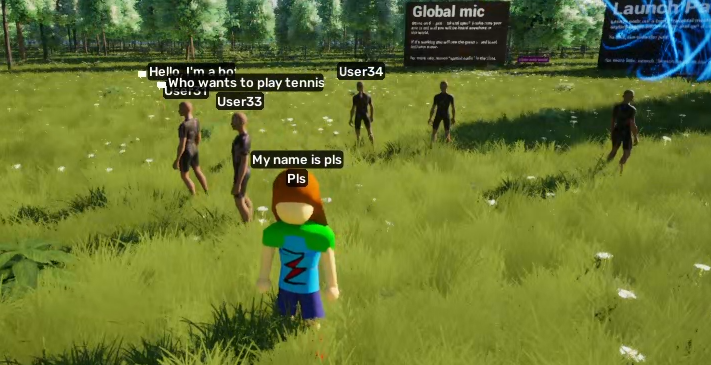

In Example Plugin, we have an example component, BPC_M2Example_NameplateComponent, which displays players' usernames over their heads, along with their recent chat messages.

Features (and limitations)

  • Players in the rendering LOD 0 will have nameplates over their heads

  • Visibility checks are used to hide the nameplates of players that are blocked by scenery

    • The visibility checks run on a 1 second timer, so will not apply instantaneously as characters move e.g. behind scenery

    • The example's visibility checks are pretty simplistic, running a single line trace to the center of the character, so partially visible characters may or may not have nameplates visible

  • If players with nameplates move closer/further away, their nameplate will get larger/smaller

  • If players with nameplates send chat messages, they should appear over their heads.

Implementation Details

The nameplate component logic

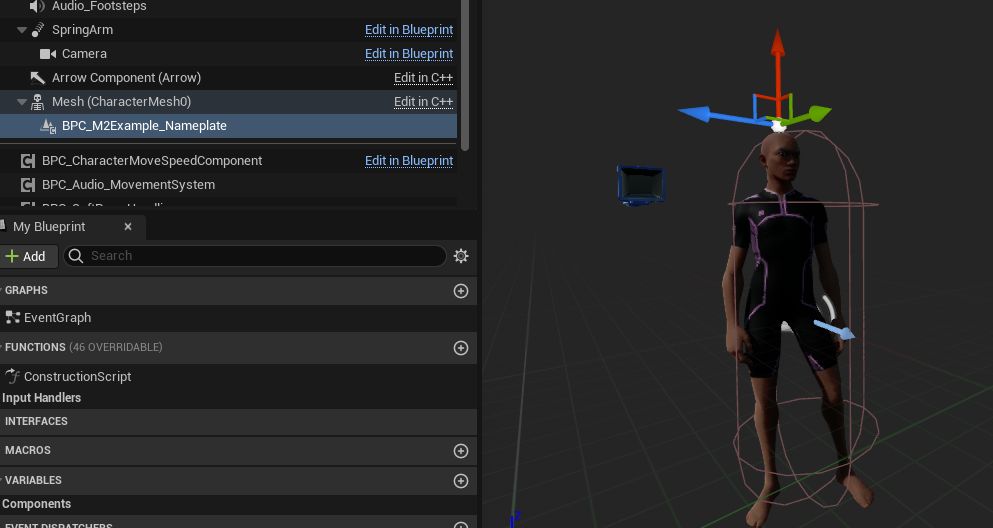

BPC_M2Example_NameplateComponent is a WidgetComponent, attached to the BP_M2Example_PlayerCharacter's head, the which displays a WBP_M2Example_Nameplate widget.

  • The widget "distance" calculations are done in the component's tick, to update the scale of the widget based on how far away the player is from the camera.

    • If DistanceCullingEnabled is true, this will also hide the widgets if their square distance is outside of VisibilityDistanceSqrd.

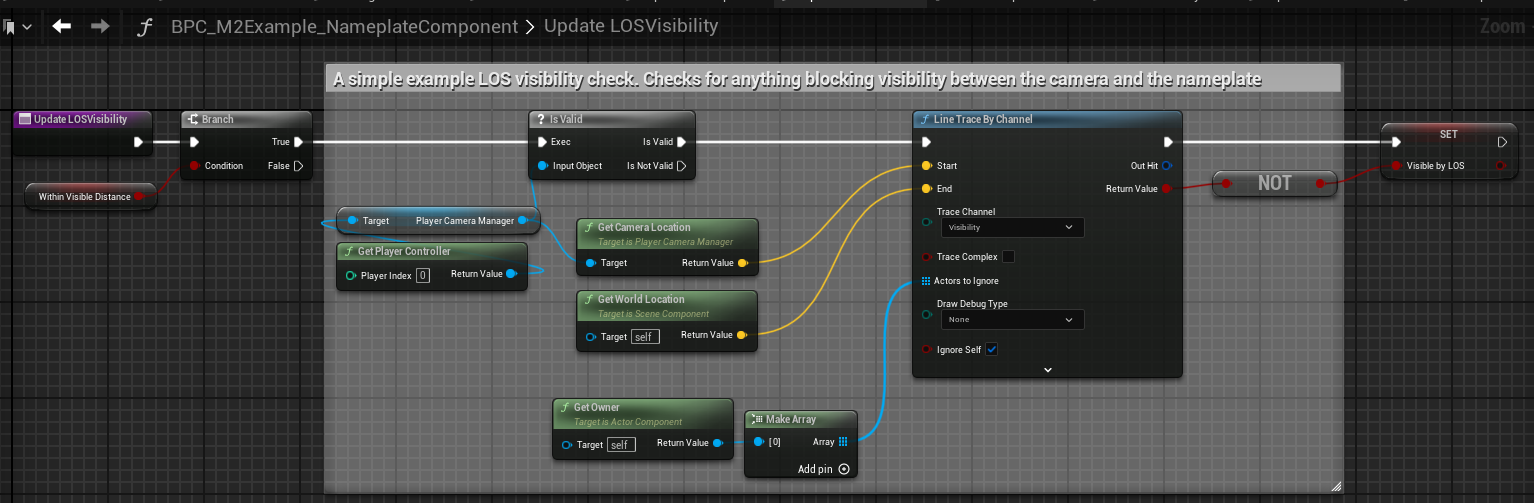

  • The "visibility checking" is run in a separate timer at a lower interval (LOSTimerIntervalSeconds)

The player name

To determine the local player's name, we need to use the "Profile data provider" world service (see World Services). This service is responsible for getting your player name from the web platform, and applying any name changes back to the web platform.

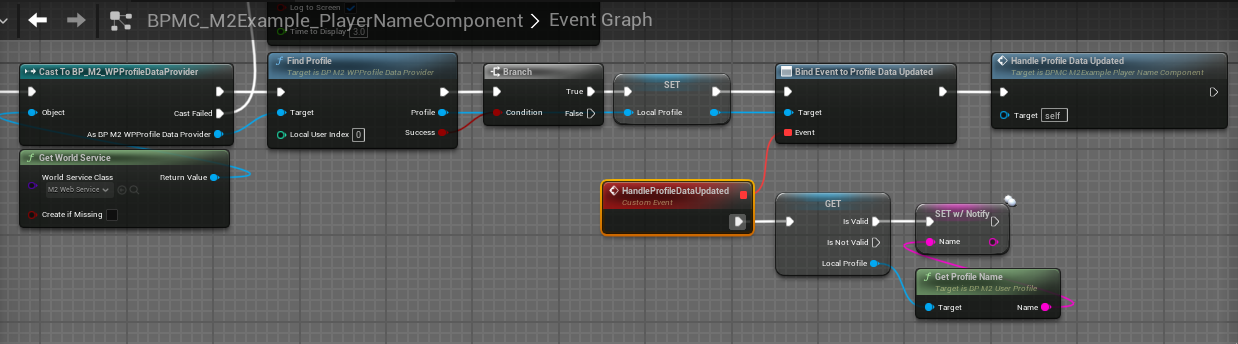

For other players to see your player name, we need to replicate that within Unreal. This is done in the BPMC_M2Example_PlayerNameComponent.

The WBP_M2Example_NameplatePlayerName widget (a widget within WBP_M2Example_Nameplate) then listens to this replicated player name updating, to update the nameplate.

Chat on the nameplate

The nameplate listens to the unreal chat system outlined in Unreal Text Chat.

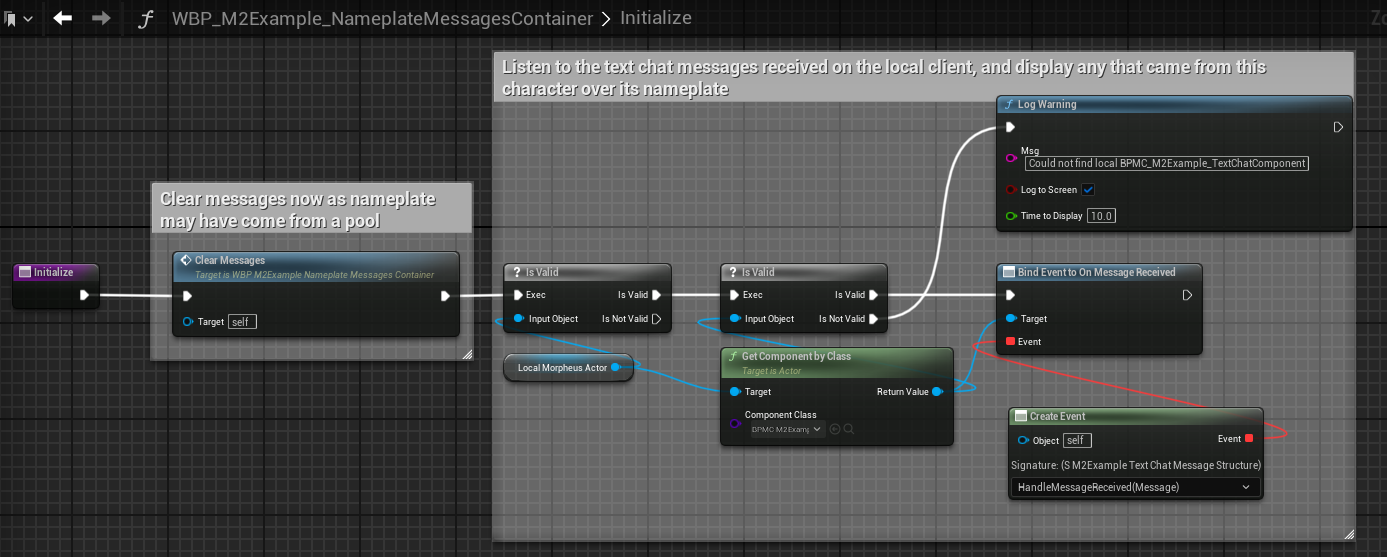

This is done in WBP_M2Example_NameplateMessagesContainer - another widget within WBP_M2Example_Nameplate.

The component needs to listen to the pooling events (see Actor Pooling), to make sure that the nameplate of the current actor reflects the correct corresponding Morpheus Actor.

🎮
📚
📒
