Example Synced Video Player

The BPM_M2Example_SyncedVideoPlayer acts as a BP-only example asset that can play both Url videos and local videos, pause them, and keep them synced across other users, including late joiners.

Using the example video player

The BPM_M2Example_SyncedVideoPlayer works by replicating the source it needs to play, and the required server timestamps so that late joiners can sync their videos to the right point. Its main usage is via the following server RPCs:

• Server_PlayerVideoFromUrl: Provide a url of a video (see Embedded Unreal Video Player), and it will play said video

• Server_PlayVideoFromAsset: Provide a M2_FileMediaSource asset referencing a local video, and it will play said video.

  • For setting up a video file, see Configuring a local video file for playing

  • NOTE: This server RPC only works for stably named objects. This means that assets in your content browser will work fine, but you will not be able to use dynamically constructed objects in this flow.

• Server_PauseVideo: Pauses a currently playing video.

• Server_PlayVideo: Plays the currently set video. Includes a Reset flag which can be used to differentiate between resuming a paused video from its current point, or playing from the beginning.

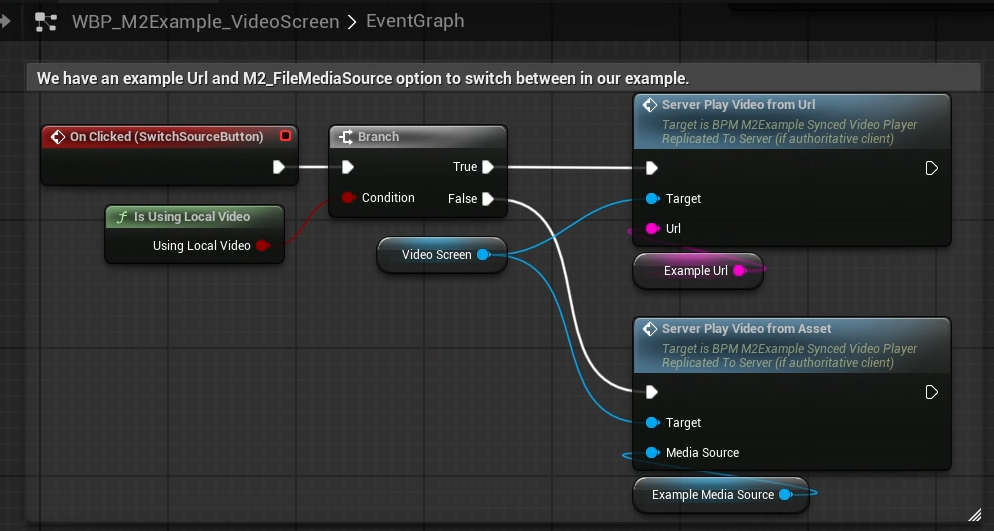

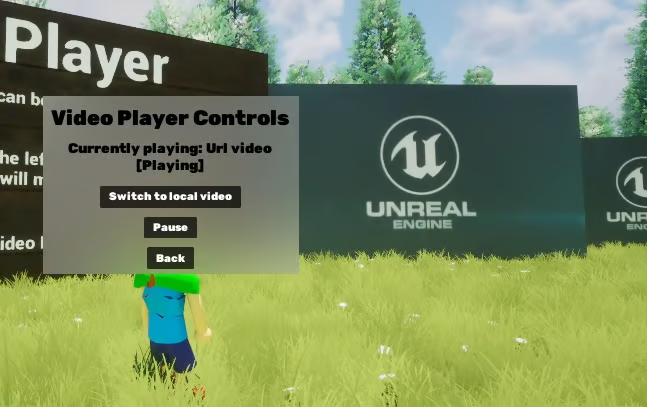

The example also has some "on click" behavior, where it creates a WBP_M2Example_VideoScreen widget that can be used to demonstrate the above behavior, i.e. playing either a local video or a Url video, and pausing/resuming it.

If you want a video player with different behavior, feel free to use this asset as a reference.

A note on how video players work:

To make a video player (synced or otherwise), you need to create a number of relevant assets:

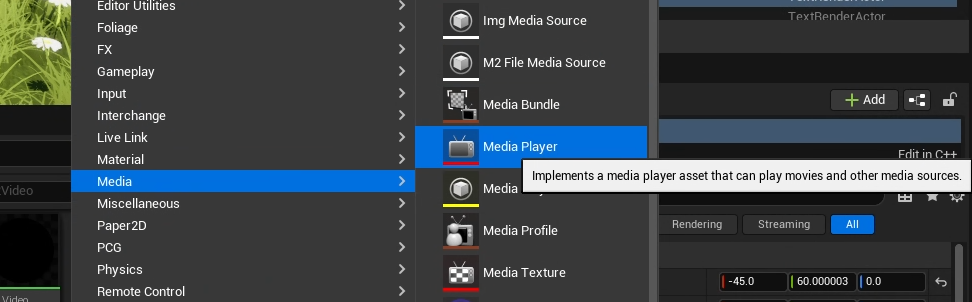

• A Media Player: this is an object that takes a video and plays it

  • You can assign the media player a video asset via e.g. OpenSource or OpenUrl.

• A Media Texture: this needs to be assigned a Media Player, and converts the video feed into a live-updating texture

• A Material: if you give a material the above Media Texture, and apply this material to an in-game object, e.g. a Plane, the object will "play" the video, by having the video feed as its material.

• A MediaSoundComponent: This needs to be assigned a Media Player, and it will play the audio feed.

These assets can either be created and configured via the content browser, or created dynamically. The former is likely easier, but has the downside that it becomes more effort to have multiple screens - each unique video player would need its own media player, media texture and material instance.

See BPM_M2Example_SyncedVideoPlayer::Initialize for some example logic that dynamically creates these required assets, enabling the same asset to play different videos in different instances.

Configuring a local video file for playing

1. Ensure your video is the correct format (as required by Unreal's Electra media player) We test video assets encoded with ffmpeg. To install ffmpeg, you can run a powershell terminal (as Administrator) as run choco install ffmpeg (or download from their website).

   Then, for a given video called in.mp4 you can run:

   ffmpeg.exe -i in.mp4 -crf 28 -preset slow out.mp4

2. Place the encoded out.mp4 video somewhere in your project or plugin's Content folder (e.g. in a Content/Movies folder)

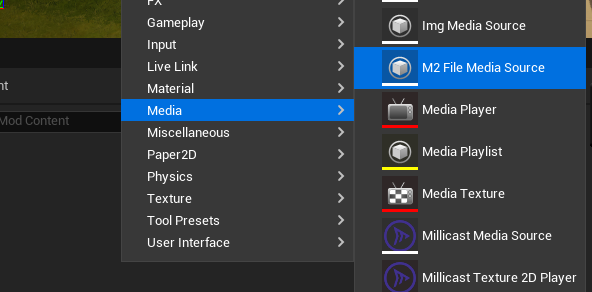

3. Create an M2 File Media Source by right-clicking in your Content Browser and selecting it (NOTE: We have replaced the native Unreal File Media Source, to make the video files accessible in the Morpheus Platform)


4. Name your asset whatever you like, e.g. TestVideo, then double-click to open it

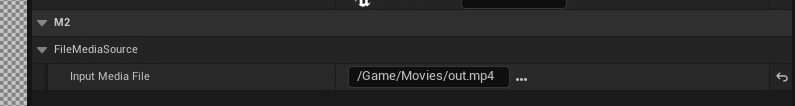

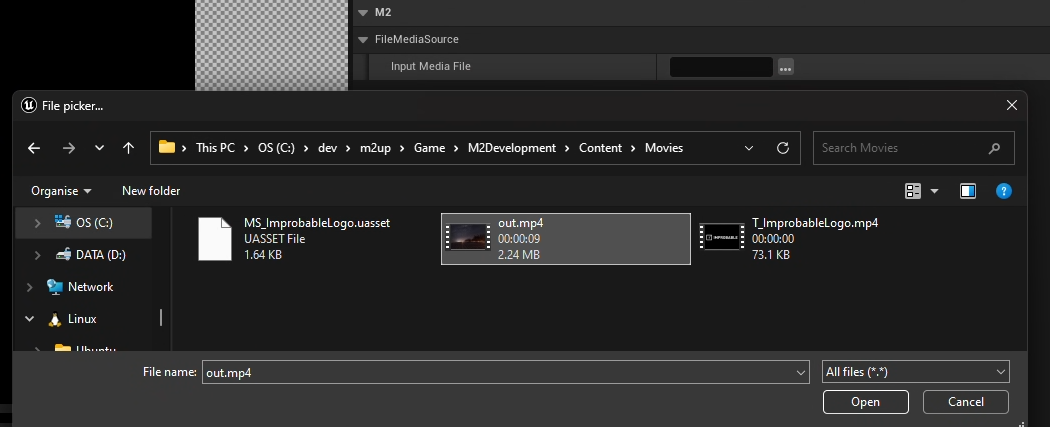

5. In the right-hand panel, select your video asset from the Content/Movies folder you put it in:



   This should result in e.g.:

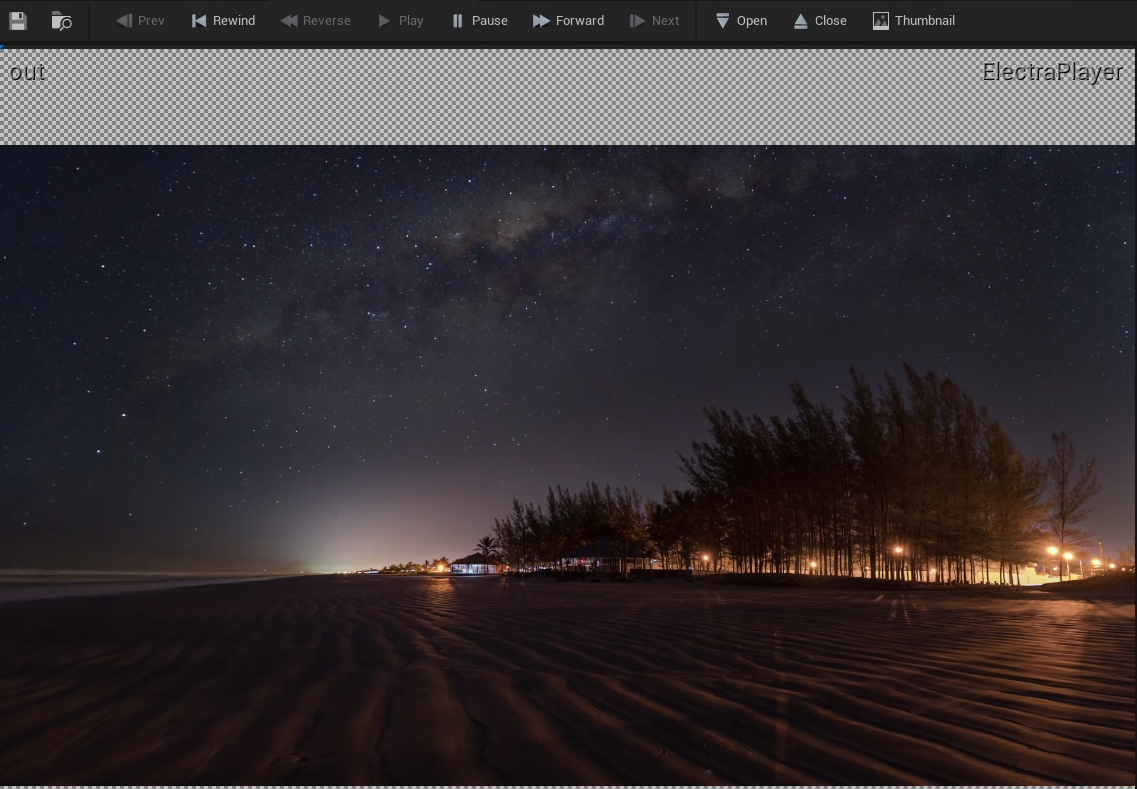

   To test this has all worked, you can click the Open button. Your video should then play.



Mirroring the video feed (BP_M2Example_VideoPlayerMirror)

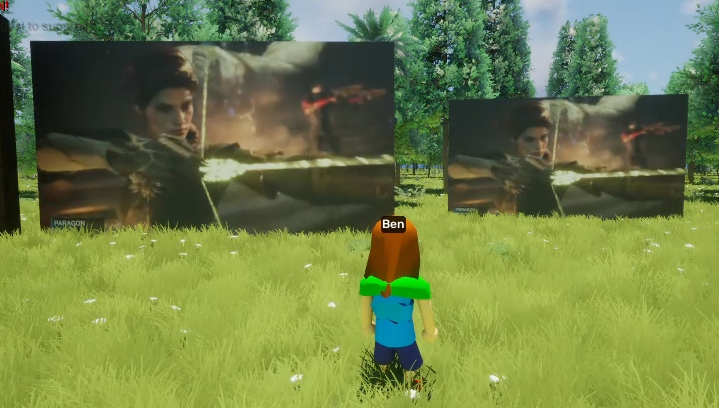

We also have an example BP_M2Example_VideoPlayerMirror asset which demonstrates how to "mirror" a screen, playing the exact same feed on an additional asset in-game.

If you set its VideoPlayer to be one of the existing BPM_M2Example_SyncedVideoPlayer assets in the world, it will copy its material, and so duplicate its screen.

A note on mirroring the audio

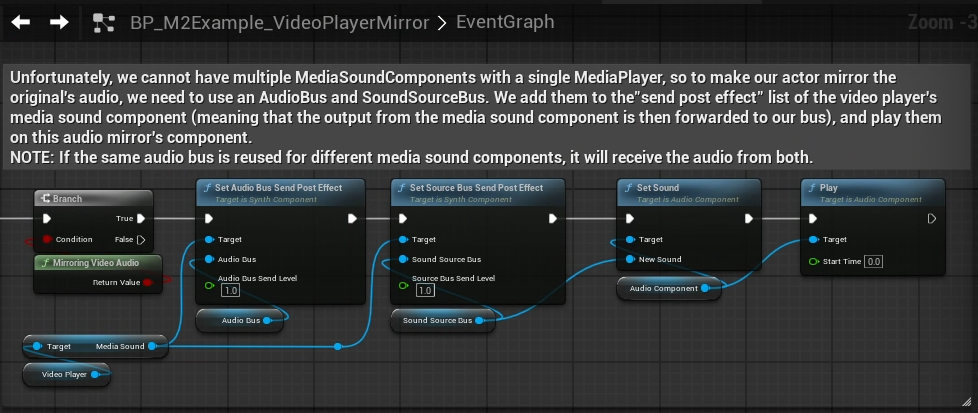

To mirror its audio, the flow is unfortunately more complicated. Unreal does not support having the same MediaPlayer playing audio from multiple MediaSoundComponents, so we need to send the audio from the original video player's sound to an audio bus, that we can then play on the mirrors. (multiple audio components can use the same bus).

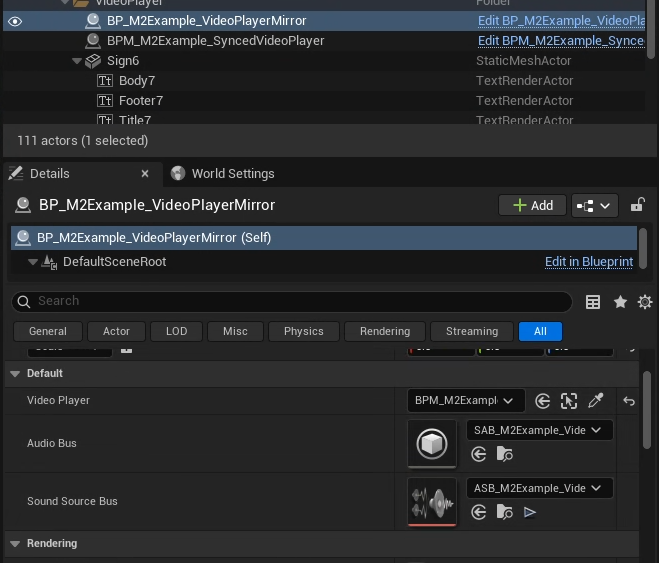

Our example demonstrates how this can be done. Unfortunately, we cannot create and configure the AudioBus and SoundSourceBus at runtime via BP like we could with the MediaPlayer etc. above, so we need them to be provided per instance. If the same bus is added to multiple media players, the bus will play both media players' audio output. Therefore, we need unique buses per unique media player. In our example, we therefore add a check (BP_M2Example_VideoPlayerMirror::ValidateVideoScreenMirrors), to warn if the same bus asset is being added to multiple media players.
